SC / APC Optical Connector Green Color 1000 Times Durability High Durability

Brand Name : Haiyu Optical

Model Number : HYG-FOC-SCA-001

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000pcs per day

Delivery Time : 2-3 working days

Packaging Details : each packed in pe bag, 400-600pcs/carton

Product name : Fiber Optic SC APC Fast Connector

Connector type : SC APC

Fiber type : Singlemode

Color : Green

Durability : 1000 times

Weight : 3.2g,0.5Kg/pack

Fiber cable type : 3x2mm Flat cable,2.0mm 3.0mm cable,3.1*2.0mm Butterfly Optical Cable

Application : FTTH FTTB FTTX Network,CATV

Contact Now

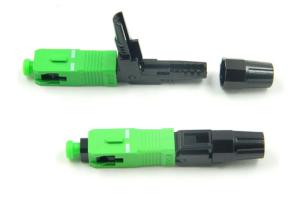

SC / APC Quick Field Assembly fiber optic Connectors

The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.

Parameters:

Item Unit Parameters
Insertion loss dB ≤ 0.3(1310nm & 1550nm)
Return loss dB ≤ -40
Bare fiber strength N >5
Clad strength N >10
Tension N >50
Tensile strength (20 N) dB IL ≤ 0.2& RL ≤ 5
Mechanical ‎durability(500times) dB IL ≤ 0.2& RL ≤ 5
Operating Temperature °C minus 5~70
Storage Temperature °C minus 40 ~ +85

SC / APC Optical Connector Green Color 1000 Times Durability High Durability

Features:

  1. Good performance and High success rate.
  2. Easiness in installation with average splicing time of 15 sec
  3. Special tool is simple and convenient to use.
  4. Reusable and repeat orperation times are up to 100.
  5. Integrated protection of the casing to prevent the connector form impact
  6. On line tension is up to 20N to protect the connector from the draging
  7. The maxmum tension is up to 100N. It’s the most safety connector

Product application:

  1. FTTX/FTTH fiber to the home
  2. Local area network and smart grid
  3. Mining and Oil
  4. Security equipment
